The side wall of
bed is constructed of double-rib plates and internal rib
plate employs combined structure of box-type and bevel
ribs, Rigidity of machines increases a factor of by 1/3
times compared with that of n-type ribs of single
wall.
Operations are concentrated. On the apron,
there is a device which can move rapidly and is operated
by a single handle.
Braking and rotating direction
change of spindle isvisualizedly controlled by hydraulic
system.

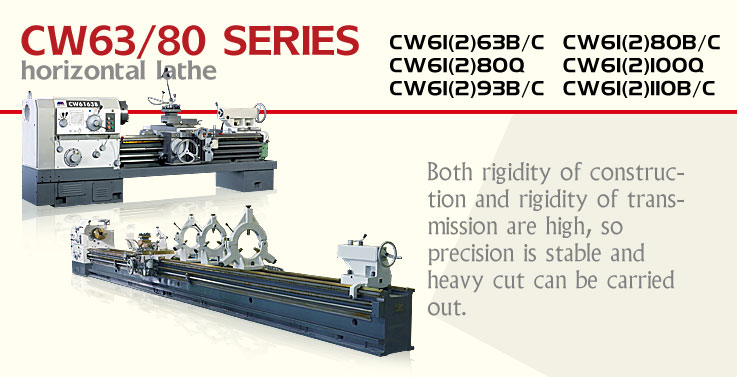

Both rigidity of construction and rigidity of
transmission are high, so precision is stable and heavy
cut can be carried out. Owing to the saddle guideway
which is inlaid with “TSF” wear-resisting material
plate, the carriage moves lightly and nimbly. The
service life of the guideway is extended.
Lubricating system circulates from the external
independent storage tank, thus cutting precision is
increased. The spindle bore is 104mm. the tailstock is
equipped with a graduated disc and graduated line.
The machine is characterized with elegant appearance
and easy to be cleaned and maintained.
|
